Azar Models S007 - Zmaster - Pulsed DC speed controller
Description

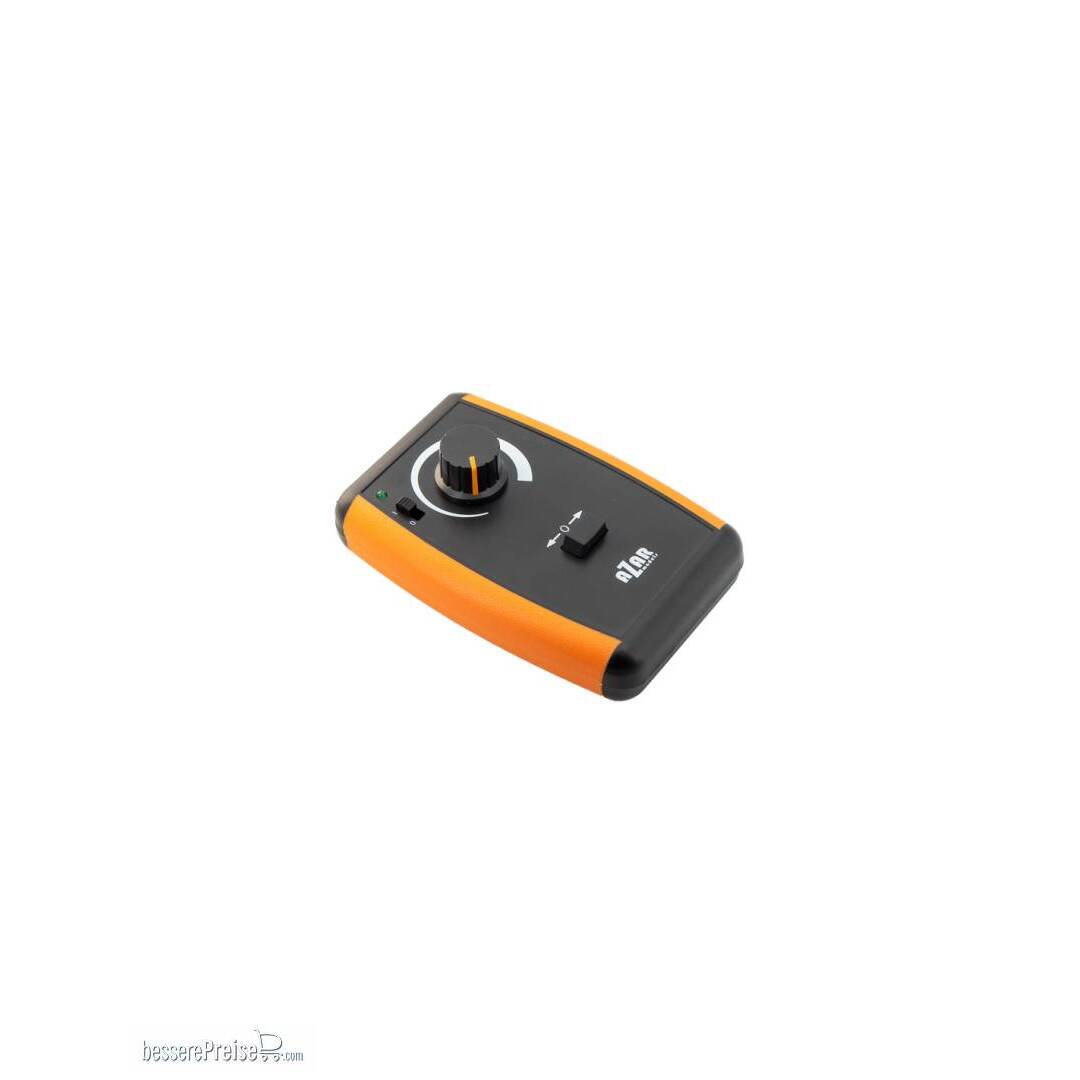

The Zmaster is a high performance throttle system designed by AZAR MODELS for driving Z scale analog locomotives. It allows you to manage the speed of the models with great progressiveness and finesse over the entire speed range, especially at low speeds. The Zmaster uses direct current technology called "pulsed" or pulse width modulation.

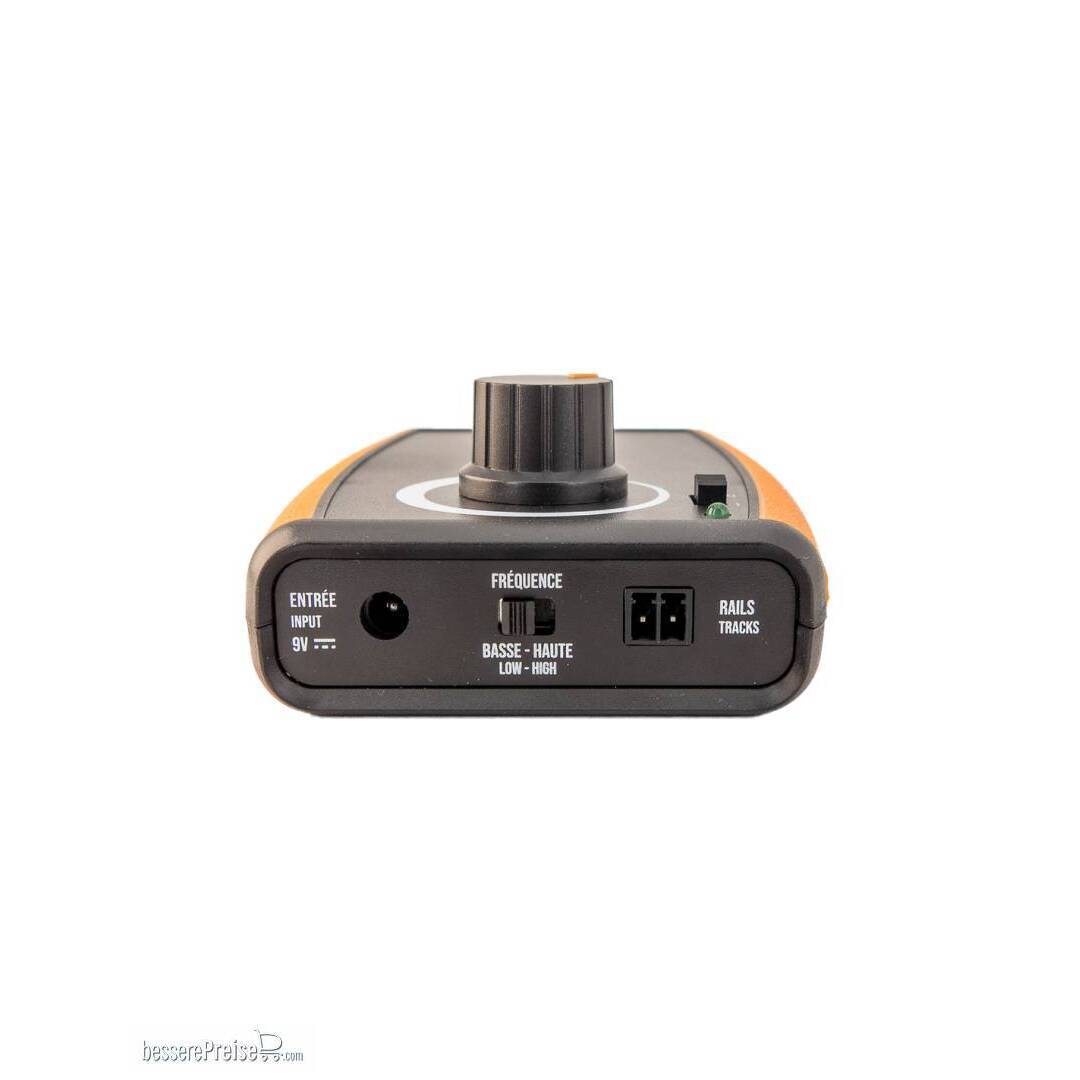

To get the most out of this technology and your locomotives, the Zmaster operates under 2 selectable modulation frequencies. The first is suitable for modern AZAR MODELS locomotives (high frequency) and the other for older generation locomotives with 3 or 5 pole motors (low frequency).
Technical features :
- Design for Z scale, Dual frequency for old and modern Z scale analog locomotives, Output max. 9V, 1000 mA,
- LED lights still on even when the locomotive is stop.
- Sensitive potentiometer,

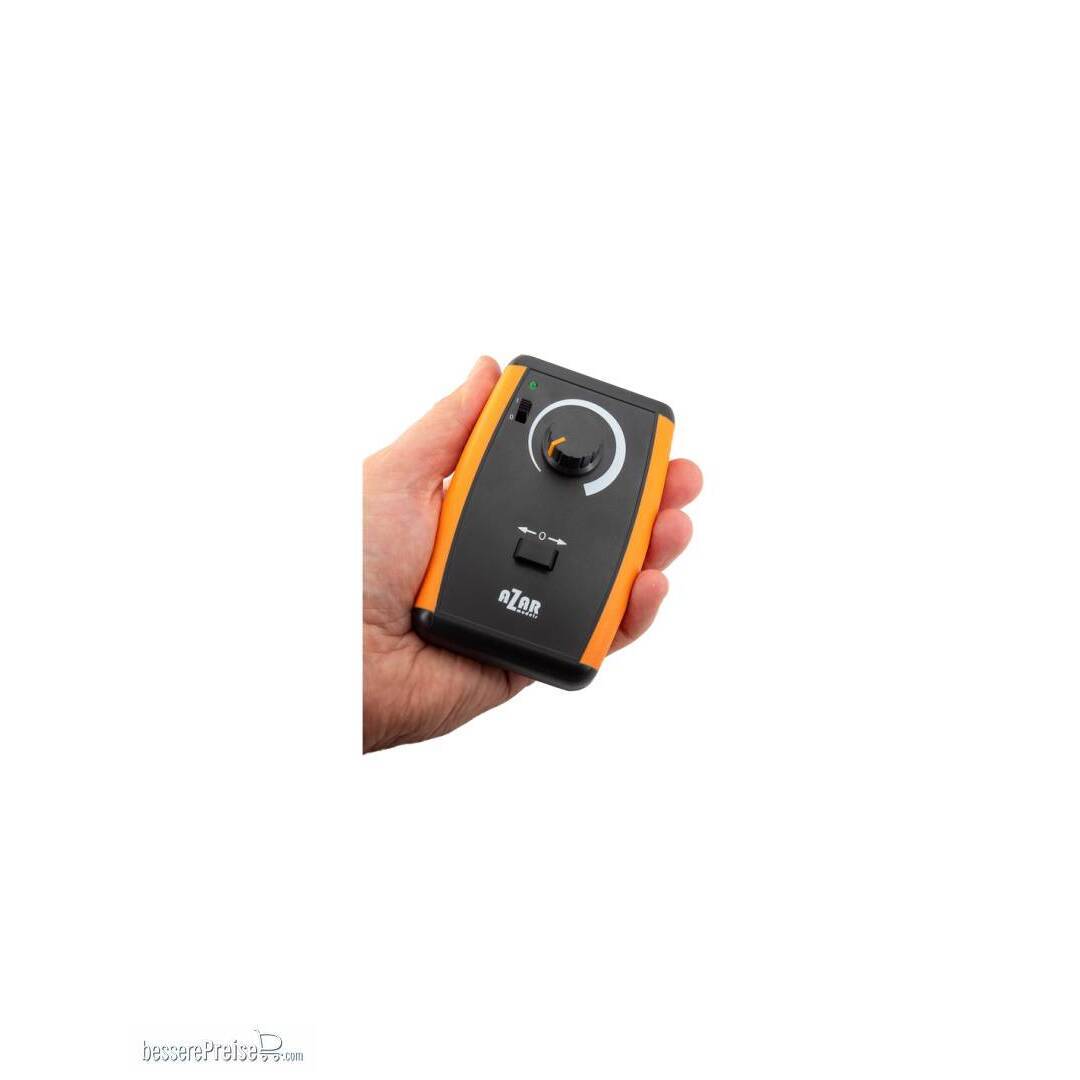

- Ergonomic design for holding in the hand or placed on your layout
- Short circuit protection on output with auto reset
- Direction switch (forward, reverse, zero position)
- Separate power supply by a plug-in power supply unit (included - 220V EU plug)

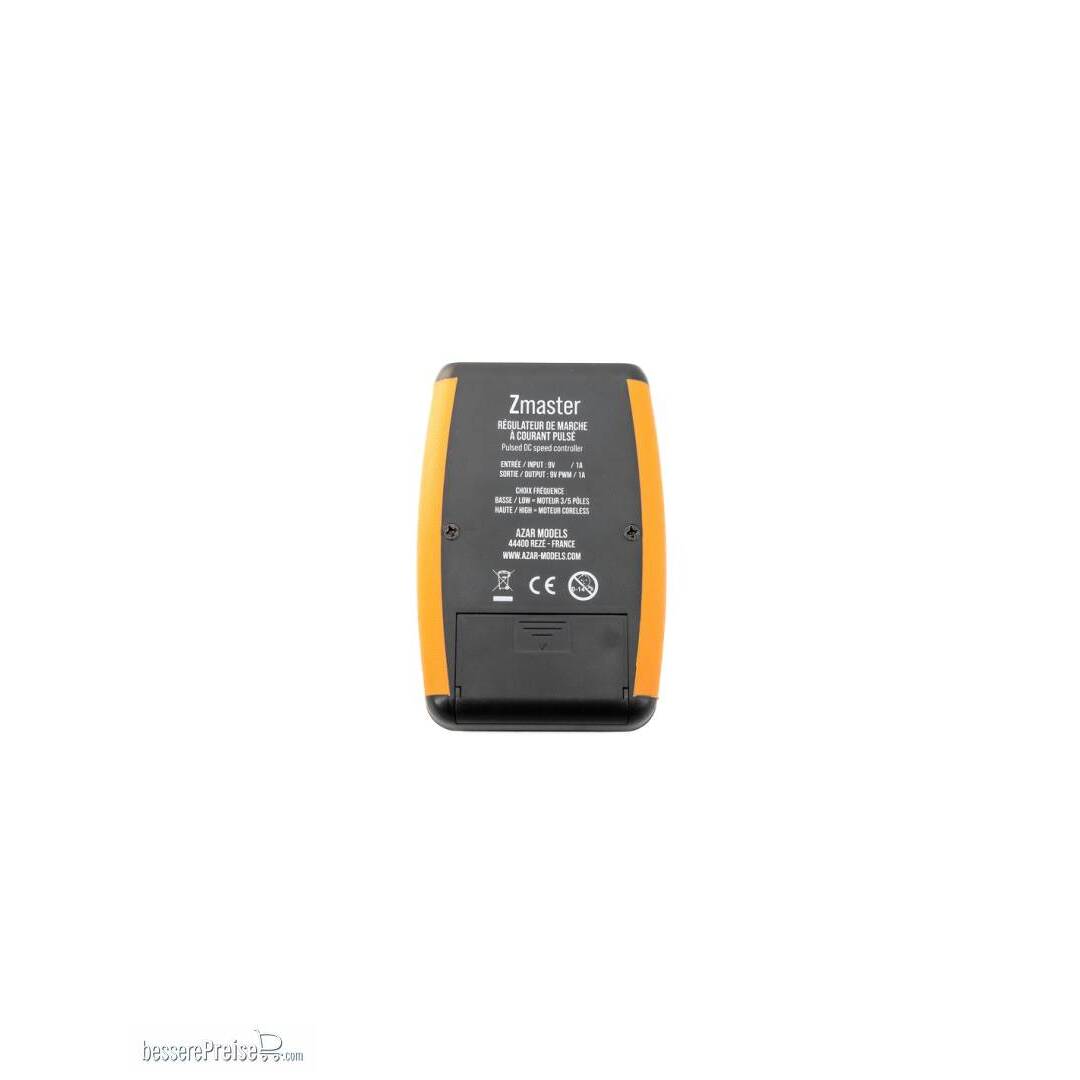

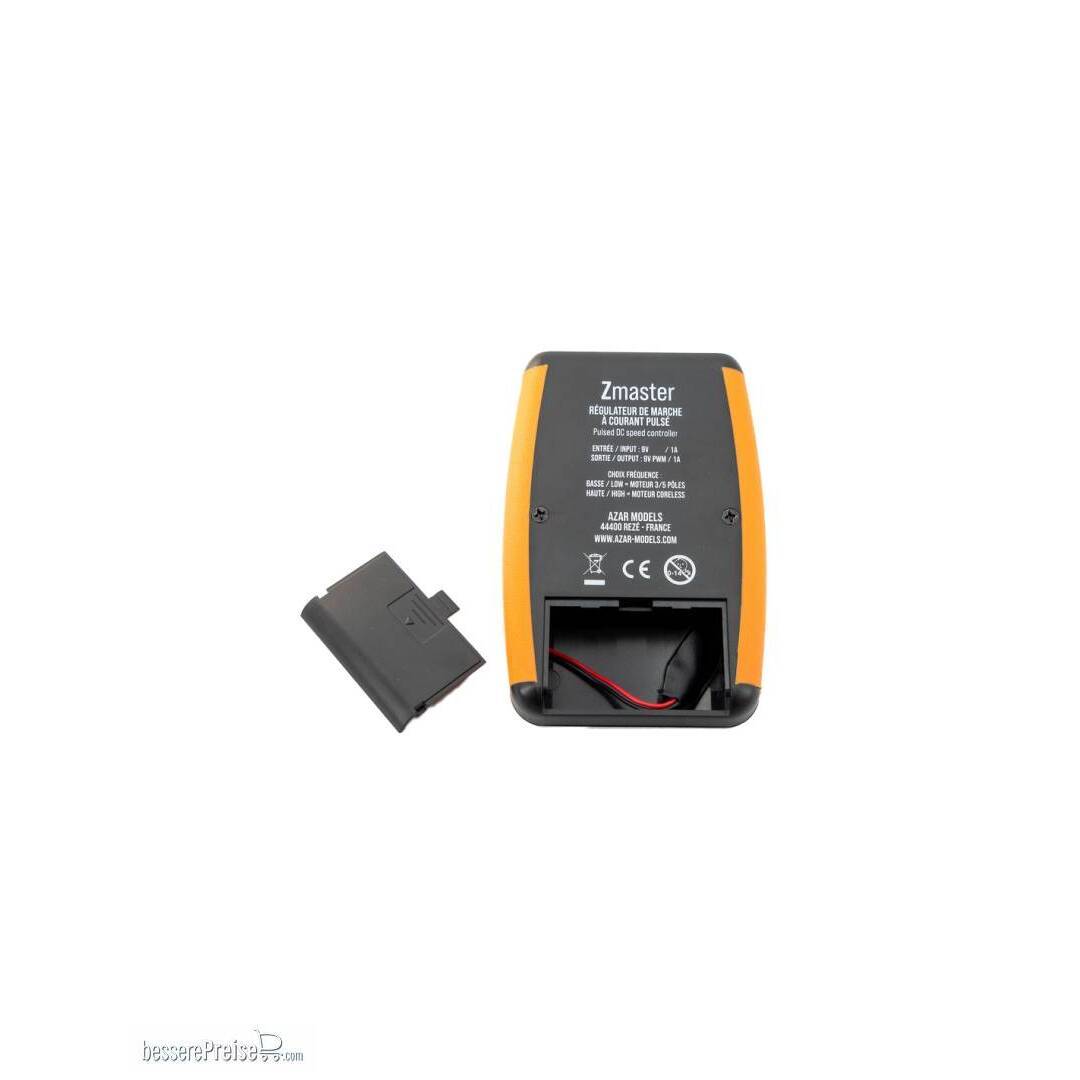

- Battery compartment (1 x 9V batterie) for mobile use
- Dimensions: 80 x 117 x 39 mm
Included :
- Zmaster speed controller
- track connector
- AC adaptor 220v EU
- Manual
Warning: Not suitable for digital locomotives, even in analog mode, otherwise the digital decoder will be destroyed.
